BMW cooling systems are engineered around thermal efficiency, emissions compliance, and performance, not maximum lifespan. The operating principle is straightforward but intentional. The engine is designed to run hot. Most modern BMW turbo engines target coolant temperatures above 100°C during light-load cruising. Higher operating temperatures reduce internal friction, improve combustion efficiency, and support better fuel economy. You do not want the engine running as cool as possible. Internal tolerances such as piston-to-wall clearance and bearing clearances are calibrated around roughly 100°C oil temperature. Running significantly cooler than intended can reduce efficiency and alter wear patterns.
So how does it work?
Temperature control is managed electronically. Modern engines such as the BMW N54, BMW N55, BMW B58, and BMW B48 use an electric water pump and a map-controlled thermostat. The electric pump allows coolant flow to vary independently of engine speed. The thermostat can be actively heated by the engine control unit to alter when and how it opens. Under light load the system permits higher temperatures for efficiency. Under heavy load or boost it lowers temperature targets to increase knock resistance and protect components. This is deliberate thermal management.

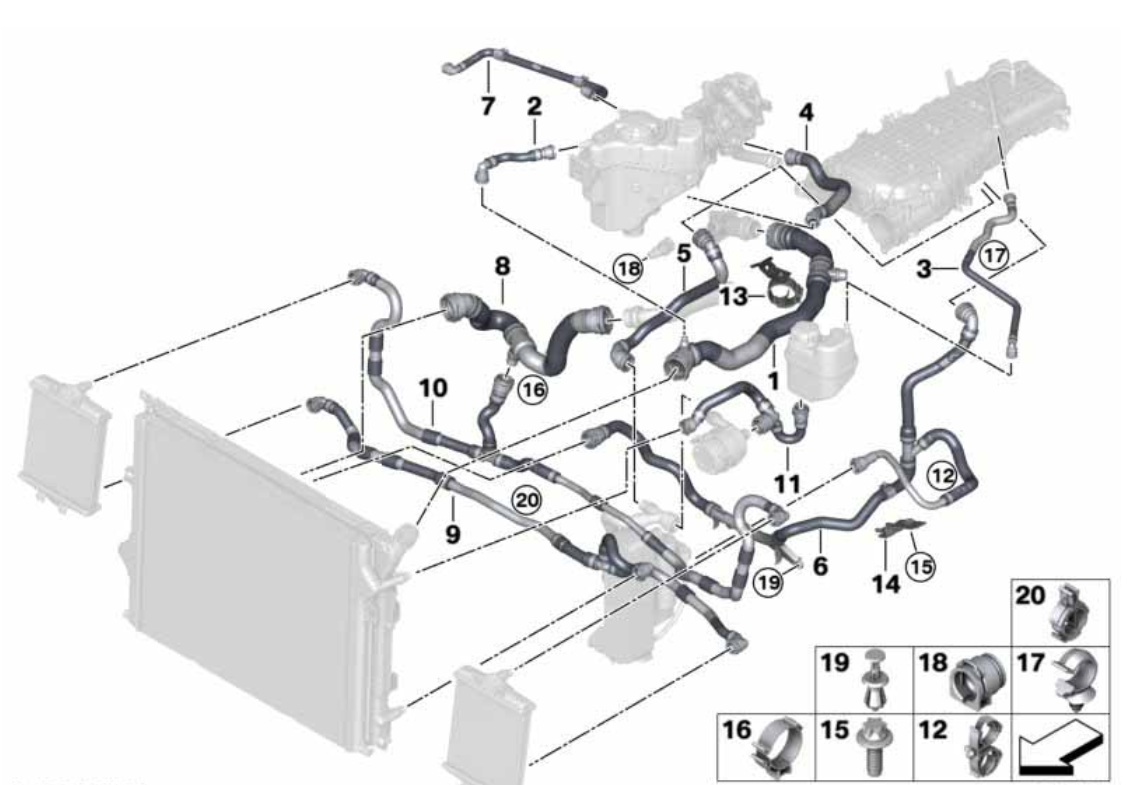

The system operates with a hot side and a cold side. The upper radiator hose is the hot side of the circuit. Coolant absorbs heat from the engine block and cylinder head, then exits through the upper hose into the radiator. Airflow across the radiator core removes heat from the coolant. The cooled fluid exits the radiator through the lower hose, which feeds into the electric water pump. The pump circulates the lower temperature coolant back into the engine block. The thermostat regulates how much coolant flows through the radiator versus bypassing internally, maintaining the desired operating temperature.
Why Plastic?
The extensive use of plastic components is often misunderstood. Coolant flanges, expansion tanks, quick-connect fittings, and hose junctions are commonly molded plastic. This is not simply a cost-cutting decision. BMW produces dozens of unique cooling system configurations across global platforms. Tooling and validation costs for injection-molded components are extremely high and require significant production volume to justify. Plastic allows complex integrated geometries, reduces overall weight, simplifies assembly, and supports efficiency targets. In some cases, once tooling and validation are considered, margins on individual cooling components are minimal.
These components are not designed for indefinite longevity. Plastic exposed to constant heat cycling and pressure will eventually become brittle. Over time expansion tanks crack, hose necks weaken, and connectors fail. This aligns with expected service life assumptions rather than long-term preservation. From an engineering standpoint the system is optimized for performance, emissions, packaging, and mass reduction.
BMW cooling systems are precise and thermally aggressive. They are reliable when maintained properly, but they are not tolerant of neglect. The engine is meant to run hot. The components are designed around that reality. Understanding that philosophy is essential to maintaining the system correctly.
